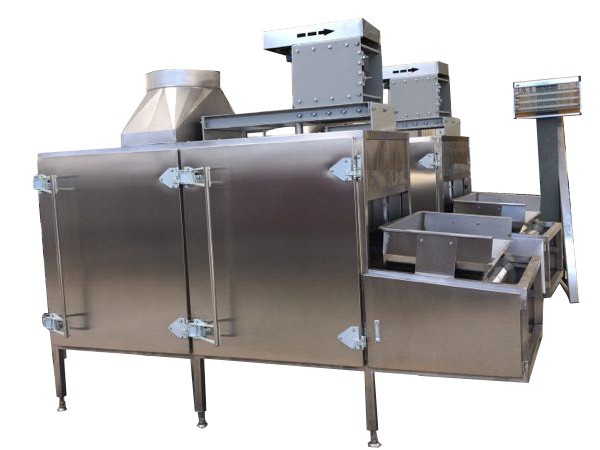

Peanut Cooling Machine

Peanut Cooling Machine

Working principle of peanut cooling machine (1) Transportation Principle: The reducer (peanut cooling machine) drives the driving wheel through the chain drive, and the driving wheel uses the spline structure to drive the mesh belt forward. (2) Cooling Principle: Cooling fan sucks room air...

Send InquiryChat Now

Working principle of peanut cooling machine

(1) Transportation Principle: The reducer (peanut cooling machine) drives the driving wheel through the chain drive, and the driving wheel uses the spline structure to drive the mesh belt forward.

(2) Cooling Principle: Cooling fan sucks room air through the air inlet, sucks through the mesh belt and material under negative pressure, penetrates the material to the bottom of the mesh belt, and the wind with heat enters the impeller of the cooling fan through the conversion box and blows out the equipment through the fan to discharge heat.

Basic data

No.

Q’ty

1set

1

Size

5696X1700X2125mm

2

Capacity

500Kg/h-600Kg/h

3

Model

LQ-180

4

Length   of cooling unit

2190mm

5

Q’ty of   cooling unit

1

6

Conveyor   type

Hinged conveyor  mesh belt

7

Variable frequency drive power of mesh belt

0.75KW

8

Effective   cooling area

3.2m²

9

The   layer number of cooling

1

10

Effective   width of mesh belt

1480mm

11

Mesh   opening rate

60%

12

Cooling   fan drive power

4KW

13

Impeller   diameter of cooling fan(mm)

Ф780

14

Air   volume  of Cooling fan(m³/h)

14000

15

Temperature   of material after cooling(ºC)

Room   temperature
