Peanut Processing Machine

Peanut Washing Machine

1. Purpose and Working Principles of peanut washing machine This machine is used for cleaning the dust on the peanut kernel. Peanut kernels go from feeding hopper to cleaning room through conveying belt. During the conveying period, the brush roller will turn and clean the peanut kernel. And...

Product Details

1. Purpose and Working Principles of peanut washing machine

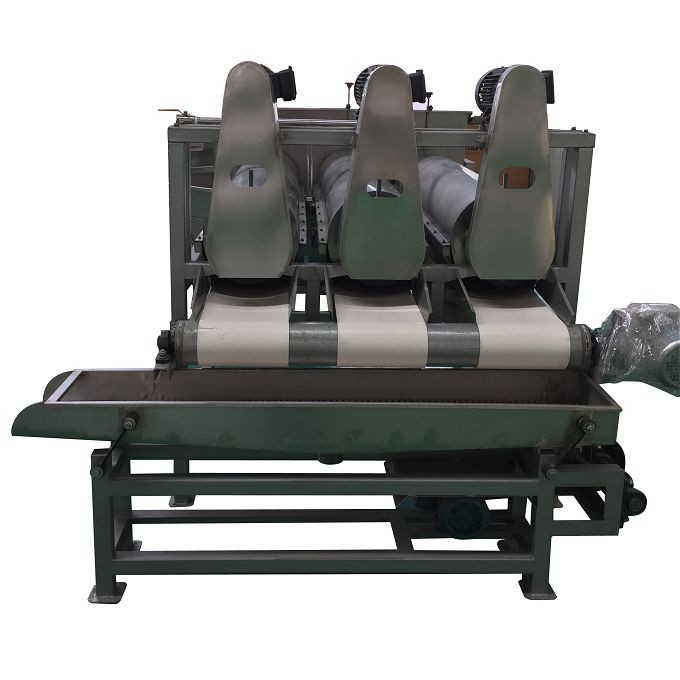

This machine is used for cleaning the dust on the peanut kernel. Peanut kernels go from feeding hopper to cleaning room through conveying belt. During the conveying period, the brush roller will turn and clean the peanut kernel. And then go into vibration sieve through conveying belt. The vibration sieve will take off some water on the peanut kernel. The waste water will be discharged outside through sewage pipe.


2. Structure and Performance of peanut washing machine
2.1 This machine consists of feeding hopper, brush roller, transmission part, vibration sieve, water discharging device and water feeding device.
2.3 The feeding hopper, roller and vibration sieve are all made of stainless steel, and they are compact, operate stably with little noise.


3. Main Technical Data

Model

Size

Weight

Power

Production rate

Length x width x height(mm)

Kg

KW

About kg/h

HSX-2

2900X1630X1280

400

2.2

600

HSX-3

2900X1850X1280

500

2.2

900
